Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter

Name: Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter
Brand: Qijie
Price: 1 USD

China Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter wholesale

Brand Name : Qijie

Model Number : Pleated Filter Element

Certification : Pleated Filter Element

Place of Origin : China

MOQ : 100pcs

Price : Discuss

Payment Terms : L/C, T/T

Supply Ability : 1500pcs

Delivery Time : 15-18days

Packaging Details : paper cartons

Material : stainless steel

function : filter element

Contact Now

Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter

manufacturer of woven wire mesh for since year 2007.Our main products are filter elements, wire mesh cloth, filter screen pack, spot welding screen pack, automatic stainless steel screen belt, strengthening screen, conveyor belt, and wire mesh demister.We provide sample customization, drawing customization and other diversified services, committed to creating a diversified filter.

Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter

The tables below shows the standard grades and specifications available for XC-FILTER's plain weave wire mesh & twill weave wire mesh.

Mesh	Wire Dia. (mm)	Aperture(mm)	Open Area%
4×4	1.219	5.131	65.3
5×5	0.914	4.166	67.2
6×6	0.914	3.319	61.5
8×8	0.711	2.464	60.2
10×10	0.711	1.829	51.8
12×12	0.559	1.558	54.1
14×14	0.457	1.357	55.9
16×16	0.457	1.131	50.7
20×20	0.559	0.711	31.4
20×20	0.457	0.813	41.0
24×24	0.376	0.682	41.1
30×30	0.376	0.531	34.2
30×30	0.310	0.536	40.0
40×40	0.274	0.361	32.3
40×40	0.234	0.401	39.9
50×50	0.193	0.335	43.6
60×60	0.193	0.230	29.8
60×60	0.152	0.271	41.2
80×80	0.122	0.196	37.9
100×100	0.102	0.152	36.0
120×120	0.091	0.120	31.8
150×150	0.071	0.088	29.6
200×200	0.051	0.076	36.0
250×250	0.041	0.061	36.0
300×300	0.041	0.043	26.5
325×325	0.035	0.043	30.0
400×400	0.030	0.033	27.0
500×500	0.025	0.026	26.0
(Special specification we can produce according to customer's requirements)

Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter

The tables below shows the standard grades and specifications available for XC-FILTER's plain dutch weave wire mesh

Warp/Weft Mesh	Wire Dia. (inch)	Absolute filter value (μm)	Nominal filter value (μm)
12×64	.024×.0165	270--285	200--205
14×88	.020×.013	225--245	150--155
20×150	.0098×.007	155--165	100--105
24×110	.014×.010	115--125	80--85
30×150	.009×.007	95--100	65--70
40×200	.007×.0055	65--70	55--60
50×250	.0055×.0045	55--60	40--45
80×400	.0049×.0028	43--48	35--40
(Special specification we can produce according to customer's requirements)

The tables below shows the standard grades and specifications available for XC-FILTER's twill dutch weave wire mesh

Warp/Weft Mesh	Wire Dia. (inch)	Absolute filter value (μm)	Nominal filter value (μm)
20×250	.0098×.0079	110--120	98--105
30×360	.0098×.0060	90--100	80--84
40×560	.0070×.0040	70--75	47--52
120×400	.0040×.0025	50--55	37--43
120×160	.0040×.0025	40--45	28--32
80×700	.0040×.0030	35--40	24--26
200×600	.0024×.0018	28--32	19--21
165×800	.0028×.0020	24--26	14--16
165×1400	.0028×.0016	16--18	9--11
200×1400	.0028×.0016	12--14	5--6
250×1400	.0022×.0016	11--12	3--4
325×2300	.0015×.0010	8--9	2--3
(Special specification we can produce according to customer's requirements)

Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter

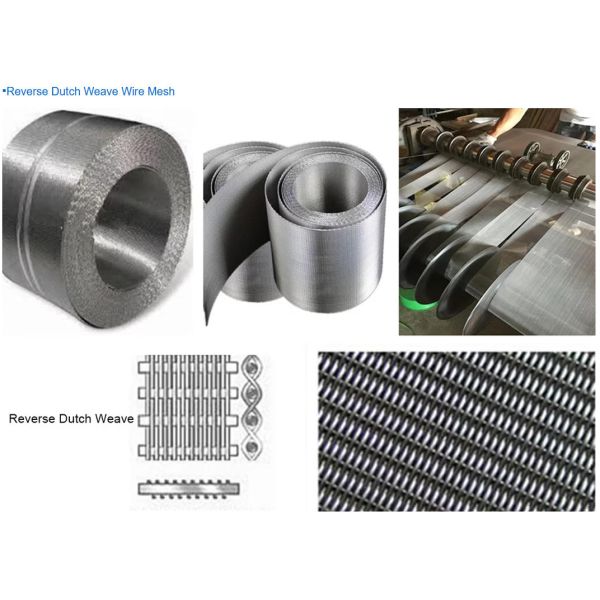

The tables below shows the standard grades and specifications available for XC-FILTER's reverse dutch weave wire mesh

Warp/Weft Mesh	Wire Dia. (mm)	Mesh Thickness (mm)
72×15	0.45×0.55	1.75
120×15	0.35×0.45	1.25
132×17	0.32×0.45	1.20
150×17	0.30×0.45	1.20
152×24	0.27×0.40	1.05
152×30	0.25×0.30	1.00
170×17	0.27×0.45	1.17
260×40	0.15×0.25	0.65
(Special specification we can produce according to customer's requirements)

Stainless Steel Wire Mesh Pleated Filter Element High Pressure Hydraulic Oil Filter
